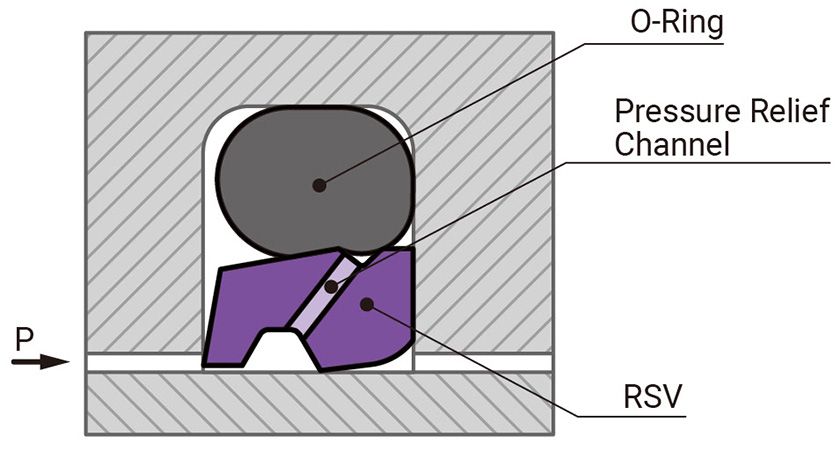

Rod Seals · RSV
Operating Conditions
| Pressure | Up to 50 MPa |
| Speed | Up to 15 m/s with linear movements, frequency up to 15 Hz |
| Temperature | -45 °C to +200 °C. Depending on seal and O-Ring material |
| Media | Mineral oil based hydraulic fluids, flame retardant hydraulic fluids, environmentally friendly hydraulic fluids (bio-oils), phosphate ester, water and others, depending on the seal and O-Ring material. |
| Clearance | The maximum permissible radial clearance Smax is shown in Installation Dimensions, as a function of the operating pressure and functional diameter. |
Important Note : The above data are maximum values and cannot be used at the same time, e.g. the maximum operating speed depends on material type, pressure, temperature and gap value. Temperature range also depends on media.

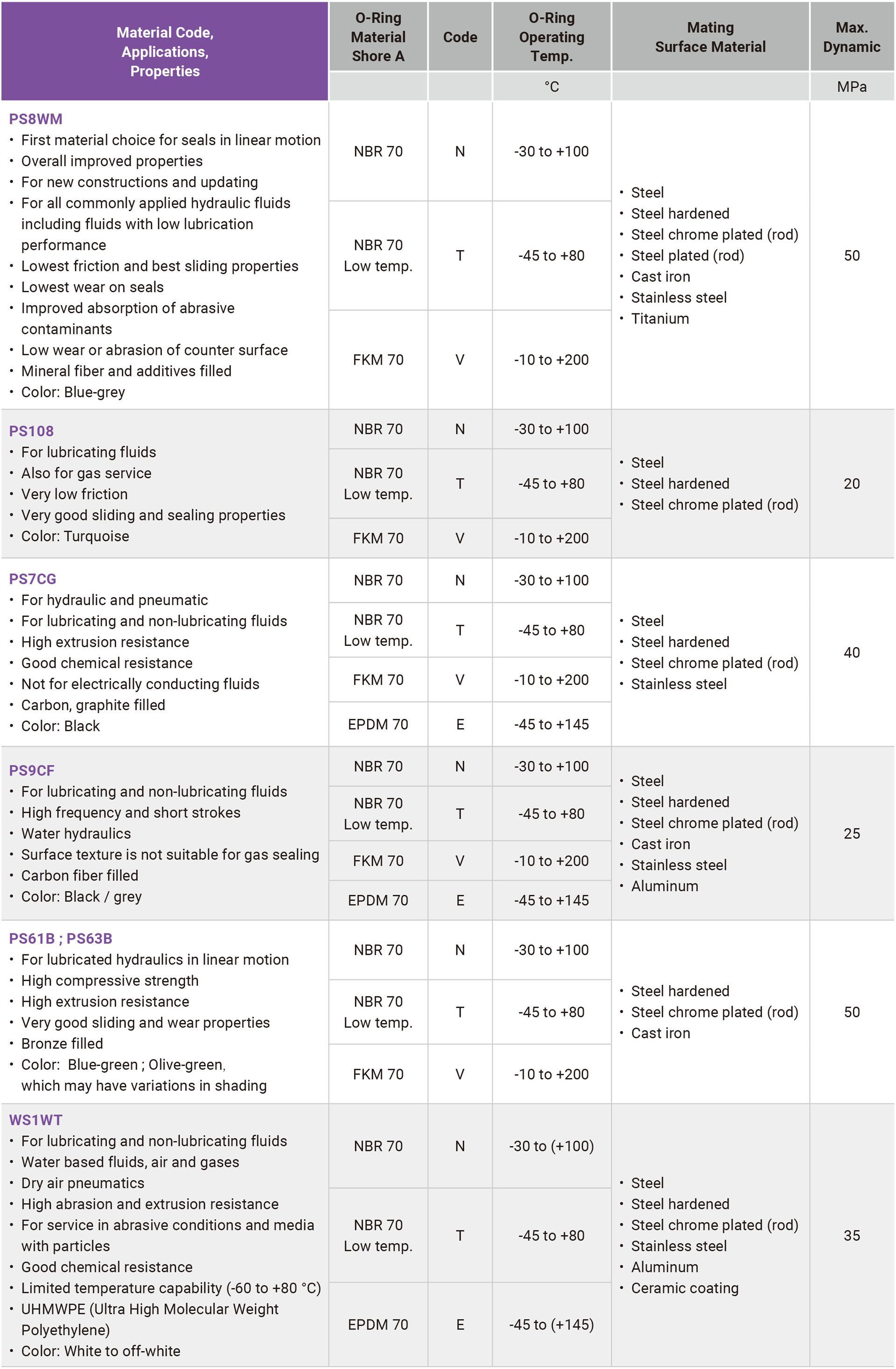

Recommended Materials
The following material combinations have proven effective for hydraulic applications:
RSV in PS8WM
All-round material for light to heavy hydraulic applications with linear, short stroke or helical movements in mineral oils, flame retardant hydraulic fluids, phospate ester, bio-oils or fluids with low lubricating properties:
| O-Ring | NBR 70 Shore A | N |
| FKM 70 Shore A | V | |
| Set Code | PS8WMN or PS8WMV |
RSV in PS61B
For medium to heavy applications with linear movements in mineral oils and other media with good lubrication:
| O-Ring | NBR 70 Shore A | N |
| FKM 70 Shore A | V | |
| Set Code | PS61BN or PS61BV |
For specific applications, all PTFE materials are available.
Materials for RSV

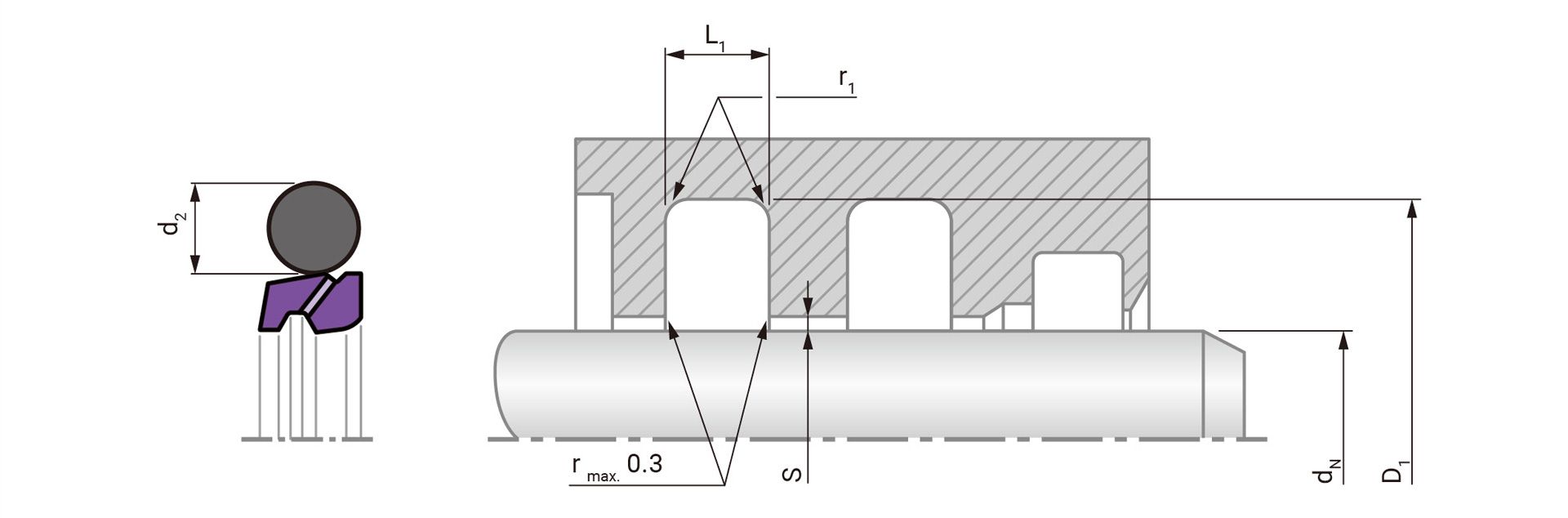

Installation Dimensions - Standard Recommendations
| Series No. | Rod Diameter dN f8/h9 | Groove Diameter | Groove Width | ||
| Standard Application | Light Application | Heavy Duty Application | D1 H9 | L1 +0.2 | |
| RSV | 12 - 37.9 | 38 - 199.9 | - | dN + 10.7 | 4.2 |
| RSV | 38 - 199.9 | 200 - 255.9 | 19 - 37.9 | dN + 15.1 | 6.3 |
| RSV | 200 - 255.9 | 256 - 649.9 | 38 - 199.9 | dN + 20.5 | 8.1 |
| Series No. | Radius | Radial Clearance Smax | O-Ring Cross Section | ||
| r1 max | 10 MPa | 20 MPa | 40 MPa | d2 | |
| RSV | 1.0 | 0.50 | 0.30 | 0.20 | 3.53 |
| RSV | 1.3 | 0.70 | 0.40 | 0.25 | 5.33 |
| RSV | 1.8 | 0.80 | 0.60 | 0.35 | 7.00 |
Ordering Guide
RSV complete with O-Ring, standard application:
| Series | RSV |
| Rod Diameter | dN = 150.0 mm |
| TMK Part No. | RSV1500063 |
RSV 1500 063 PS8WM N
1 2 3 4 5
| 1 | TMK Series No. |
| 2 | Rod Diameter x 10 |
| 3 | Groove Width x 10 |
| 4 | Material Code ( Seal Ring ) |
| 5 | Material Code ( O-Ring ) |
