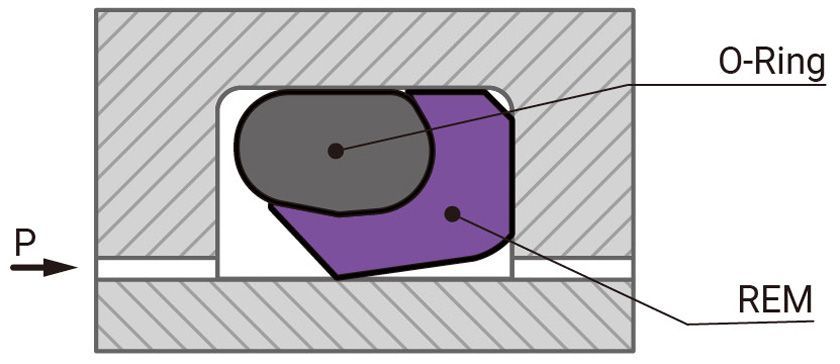

Rod Seals · REM
Operating Conditions
| Pressure | Up to 60 MPa |
| Speed | Up to 15 m/s with linear movements, frequency up to 5 Hz |
| Temperature | -45 °C to +200 °C. Depending on seal and O-Ring material |
| Media | Mineral oil-based hydraulic fluids, flame retardant hydraulic fluids, environmentally friendly hydraulic fluids (bio-oils), phosphate ester, water and others, depending on the seal and O-Ring material. |
| Clearance | The maximum permissible radial clearance Smax is shown in Installation Recommendation, as a function of the operating pressure and functional diameter. |
Important Note :The above data are maximum values and cannot be used at the same time, e.g. the maximum operating speed depends on material type, pressure, temperature and gap value.
Temperature range also depends on media.
Recommended Materials
The following material combinations have proven effective for hydraulic applications:
REM in PS8WM
All round material for light to heavy hydraulic applications with linear, short stroke or helical movements in mineral oils, flame retardant hydraulic fluids, phosphate ester, bio-oils or fluids having lubricating properties:
| O-Ring | NBR 70 Shore A | N |
| FKM 70 Shore A | V | |
| Set Code | PS8WMN or PS8WMV |
REM in PS61B
For medium to heavy applictions with linear movements in mineral oils and other media with good lubrication:
| O-Ring | NBR 70 Shore A | N |
| FKM 70 Shore A | V | |
| Set Code | PS61BN or PS61BV |

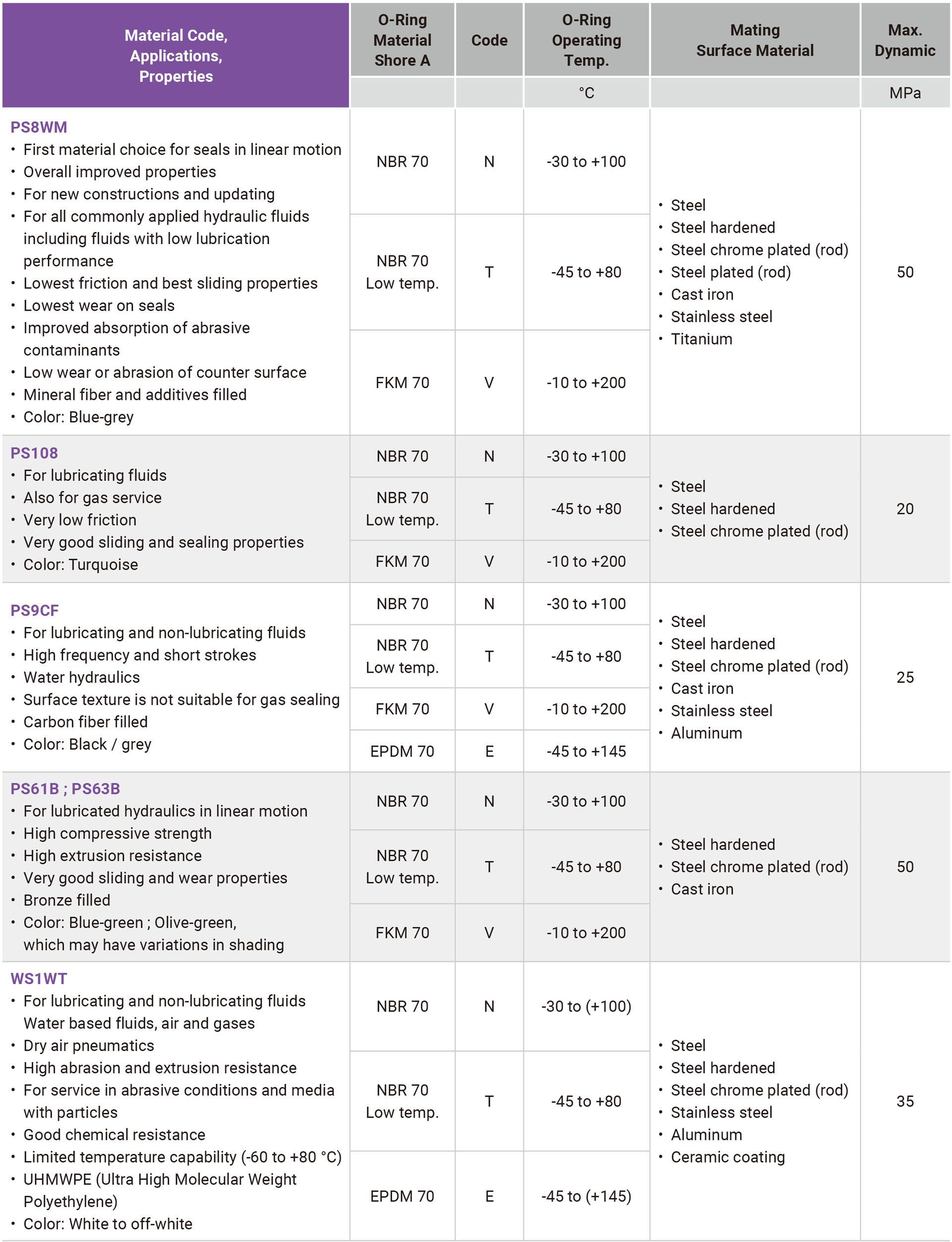

Materials for REM

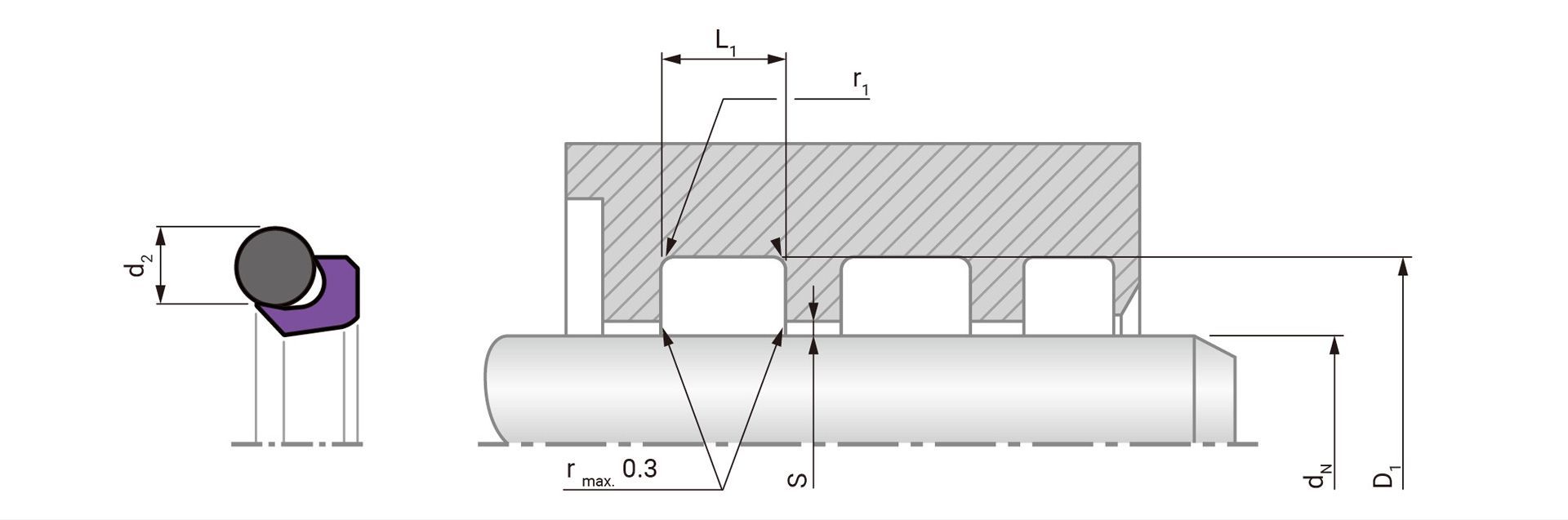

Installation Dimensions - Standard Recommendations
| Series No. | Rod Diameter dN f8/h9 | Groove Diameter | Groove Width | |
| Standard Application | Available Range | D1 H9 | L1 +0.2 | |
| REM | 10 - 19.9 | 6 - 100.0 | dN + 4.5 | 3.6 |
| REM | 20 - 39.9 | 10 - 200.0 | dN + 6.2 | 4.8 |
| REM | 40 - 119.9 | 20 - 400.0 | dN + 9.4 | 7.1 |
| REM | 120 - 399.9 | 35 - 650.0 | dN + 12.2 | 9.5 |
| Series No. | Radius | Radial Clearance Smax | O-Ring Cross Section | ||
| r1 max | 10 MPa | 20 MPa | 30 MPa | d2 | |
| REM | 0.4 | 0.40 | 0.25 | 0.15 | 1.78 |
| REM | 0.6 | 0.40 | 0.25 | 0.20 | 2.62 |
| REM | 0.8 | 0.50 | 0.30 | 0.20 | 3.53 |
| REM | 0.8 | 0.60 | 0.35 | 0.25 | 5.33 |
Ordering Guide
REM complete with O-Ring, standard application:
| Series | REM |
| Rod Diameter | dN = 250.0 mm |
| TMK Part No. | REM2500095 |
REM 2500 095 PS8WM N
1 2 3 4 5
| 1 | TMK Series No. |
| 2 | Rod Diameter x 10 |
| 3 | Groove Width x 10 |
| 4 | Material Code ( Seal Ring ) |
| 5 | Material Code ( O-Ring ) |
