Rod Seals · RU2
Operating Conditions
| Pressure | Max. 35 MPa |
| Speed | Up to 0.5 m/s |
| Temperature | Use in mineral oils: -20 °C to +110 °C |
| Media | Mineral oil-based hydraulic fluids. |
Important Note : The above data are maximum values and cannot be used at the same time, e.g. the maximum operating speed depends on material type, pressure, temperature and gap value. Temperature range also depends on media.
Materials
| Standard | US1RD |
| Temperature | -20 °C to +110 °C |
| Color | Red |
Seal Clearance
Guide values for the radial clearance between rod and gland in relation to the operating pressure and rod diameter can be found in the table below.
| Operating Max. Pressure | Radial Clearance Smax | |
| MPa | dN < 60 mm | dN > 60 mm |
| 5 | 0.40 | 0.50 |
| 10 | 0.30 | 0.40 |
| 20 | 0.20 | 0.30 |
| 30 | 0.15 | 0.20 |
| 40 | 0.10 | 0.15 |
The values for Smax given in this table apply to all types for the low-pressure side of the U-Cup. They are designed for an operating temperature of 60 °C.

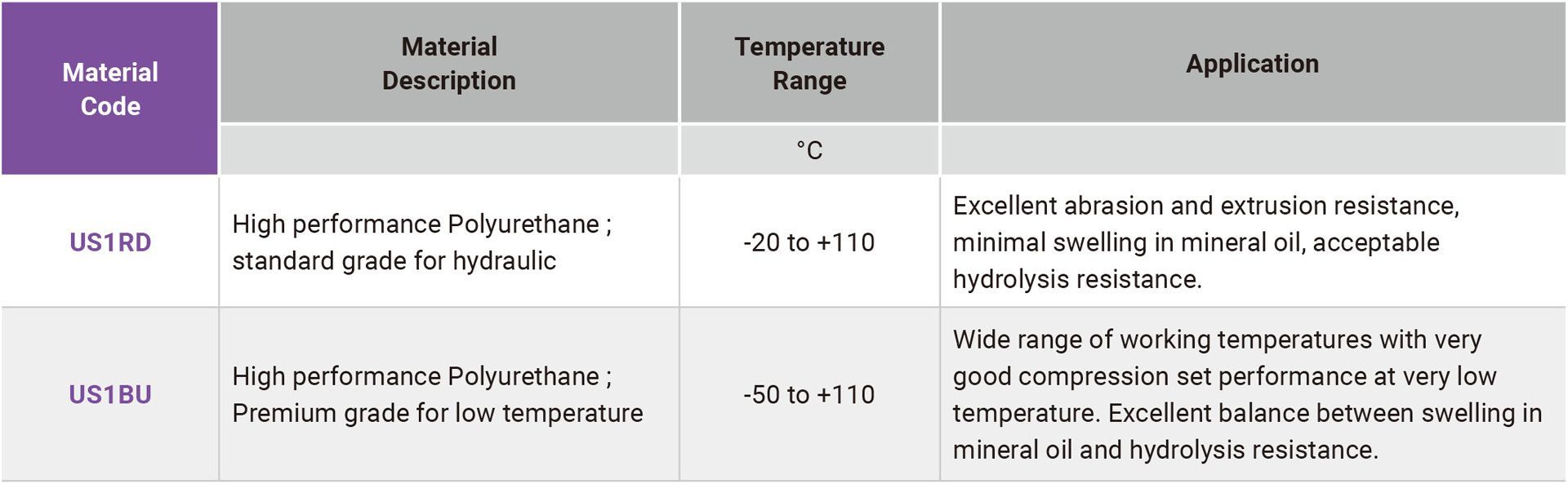

Materials for RU2

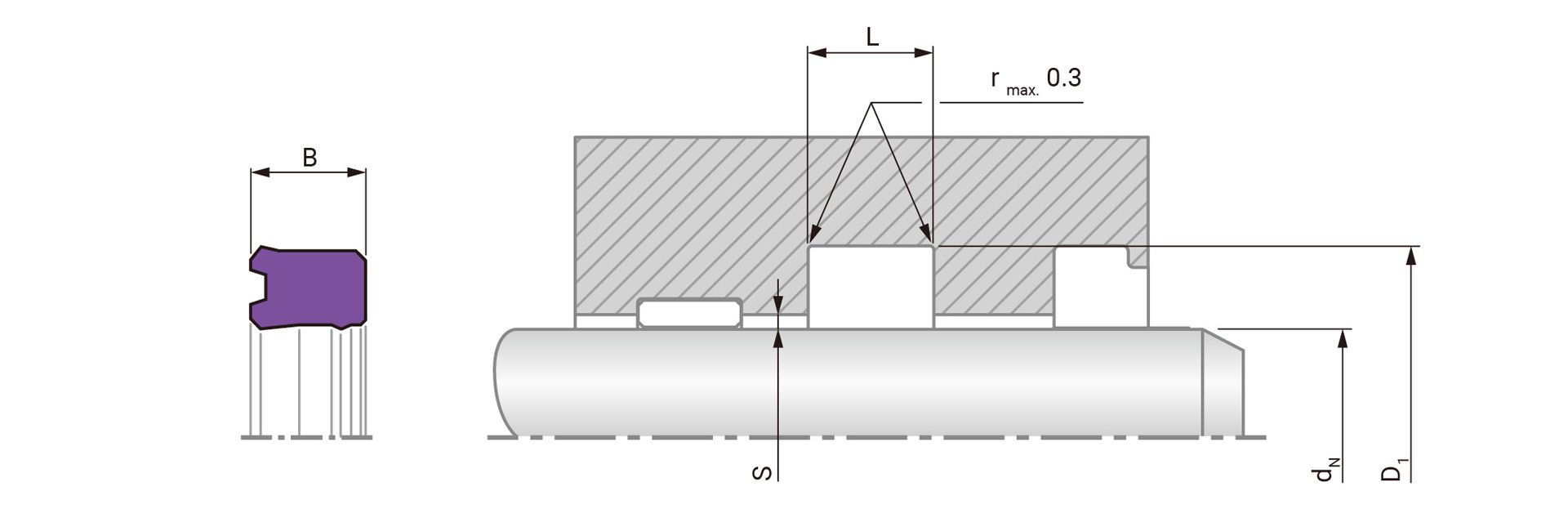

Installation Dimensions - Standard Recommendations
Ordering Guide

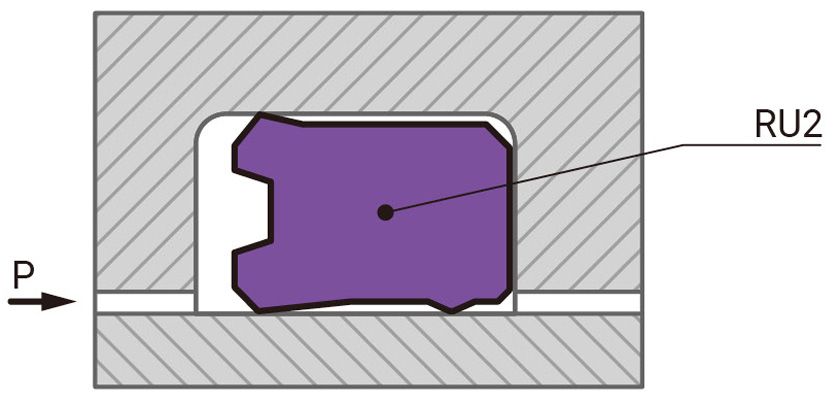

U-Cup Type RU2
| Series | RU2 |
| Rod Diameter | dN = 45.0 mm |
| Groove Diameter | D1 = 55.0 mm |
| Groove Width | L = 6.3 mm |
| TMK Part No. | RU20450063 |
RU2 0450 063 US1RD
1 2 3 4
| 1 | TMK Series No. |
| 2 | Rod Diameter x 10 |
| 3 | Groove Width x 10 |
| 4 | Material Code |
