Rod Seals · RU6
Operating Conditions
| Pressure | Max. 25 MPa (as single element) |
| Speed | Up to 0.5 m/s |
| Temperature | Use in mineral oils: -20 °C to +110 °C |
| Media | Mineral oil-based hydraulic fluids. |
Important Note : The above data are maximum values and cannot be used at the same time, e.g. the maximum operating speed depends on material type, pressure, temperature and gap value. Temperature range also depends on media.
Materials

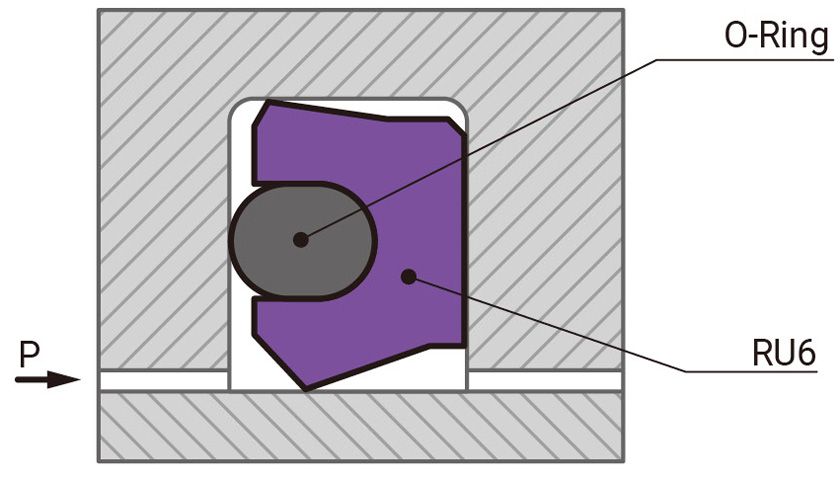

The thermoplastic polyurethane material US1RD has a high abrasion resistance, a low compression set and exhibits a high resistance to clearance extrusion. The integrated O-Ring is an NBR with 70 shore A and a very low compression set.
| U-Cup | US1RD | |
| O-Ring | NBR 70 Shore A | N |
| Set Code | US1RDN |
Seal Clearance
| Operating Max. Pressure | Radial Clearance Smax |
| MPa | |
| 16 | 0.60 |
| 25 | 0.50 |
The values for Smax given in this table apply to all types for the low-pressure side of the U-Cup. They are designed for an operating temperature of 60 °C. (for harsh conditions and high side loads the gap must be reduced by 50%)

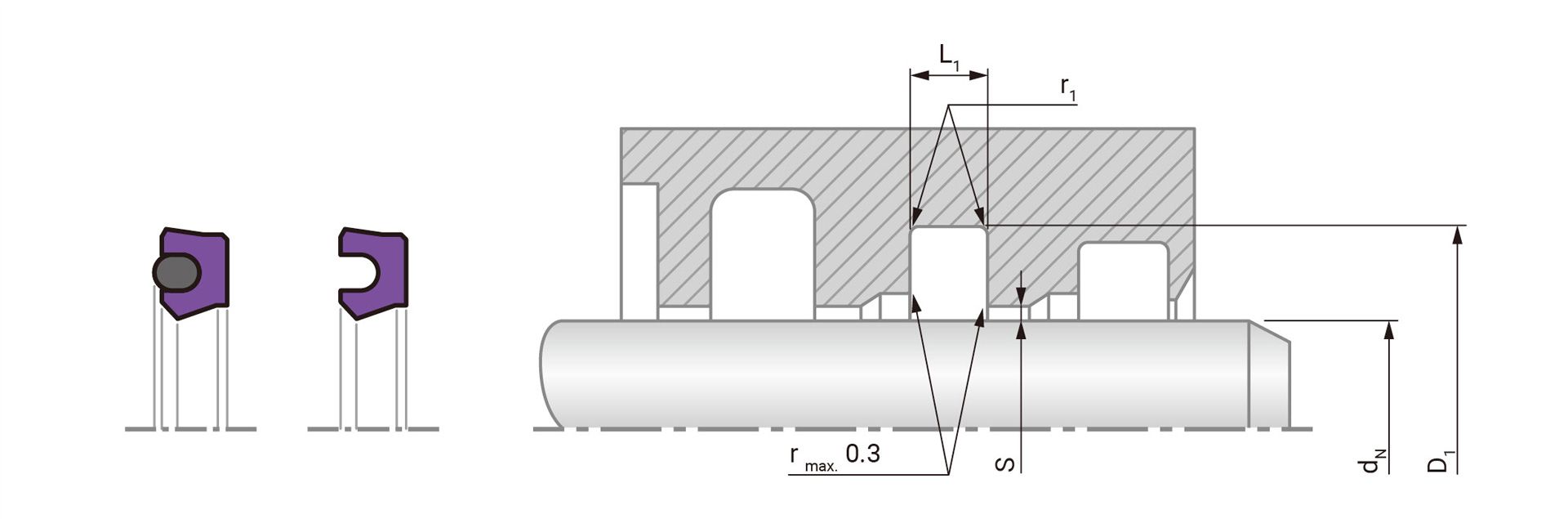

Installation Dimensions - Standard Recommendations
Ordering Guide
U-Cup Type RU6
| Series | RU6 |
| Rod Diameter | dN = 70.0 mm |
| Groove Diameter | D1 = 85.5 mm |
| Groove Width | L = 6.3 mm |
| TMK Part No. | RU60700063 |
| Compound Code Seal | US1RD |
| Compound Code O-Ring | N |
| Material Set Code | US1RDN |
RU6 0700 063 US1RD N
1 2 3 4 5
| 1 | TMK Series No. |
| 2 | Rod Diameter x 10 |
| 3 | Groove Width x 10 |
| 4 | Material Code ( Seal Ring ) |
| 5 | Material Code ( O-Ring ) |
